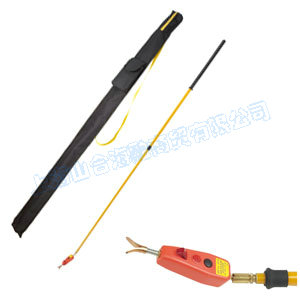

290 HD High Voltage Testers
H.V. Detector
6kV ~ 81.5kV
|
 |
|
|
FEATURES |
| |
 Telescopic, compact, light-weight. |
| Light weight easy to sue and handy. |
| High-voltage detectable. The equipment, whether in stretched state is available for voltage detection in high-tension. |
| Easy to recognize indication. Intermittent lighting in red of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable at a full daylight, noisy location. |
| Water proof. The detecting head, being tightly enclosed, is free from any trouble due to dust, water. |
| , |
|
| The detector detects high and extra high voltage in AC lines. An elongate insulation rod permits checking of high tension circuits at a safe distance for voltage. Also it is telescopic compact, light-weight, easy to sue and handy. |
|
| SPECIFICATIONS |
| |
| Measuring Voltage Range |
6kV ~ 81.5kV |
| Operation Start Voltage (To ground) |
2.7kV |
| Display |
Light : flashing red light, Sound : intermittent sound 50 dB apart 3 m |
| Overall Length |
Retracted : 1370 +/- 50mm, Extracted : 2450 +/- 50mm |
| Frequency |
50 / 60Hz |
| Operating Temperature |
-10 degree C ~ +50 degree C |
| Battery |
2 button cells LR44 (1.5V) |
| Weight |
590g (battery included) |
| Accessories |
Instruction manual, carrying case |
| COMMON RATINGS |
|
| Withstand Voltage (On insulating rod) |
100kV / 300mm : 5 minutes |
| Insulation Resistance |
2000M Ohm min. by 1kV/DC megger at the same testing location as withstand voltage |
| Leakage Current |
100uA or less than 100uA at withstand voltage test |
| Construction |
Water proof (detecting head impervious to water) |
|
特 點 |
● 使用玻璃纖維伸縮桿，方便使用與存放。
● 材質輕巧堅固，絕緣度良好。
● 具有自我測試功能設計，可判斷驗測前儀器的功能是否正常。
● 感測端部份可作角度調整並且作防水設計，具保護作用，不易損壞。
|
|
規 格 |
驗測範圍 |
6kV~81.5kV |
起始電壓(接地) |
2.7kV |
適用頻率 |
50/60Hz |
長度 |
縮短 |
1370±50mm |
伸展 |
2450±50mm |
絕緣棒耐壓 |
100kV/300mm : 5分鐘 |
絕緣狀況 |
1kV DC量測在2000MΩ以上 |
漏電電流 |
100μA或100μA以下 |
操作溫濕度 |
0C~40C |
使用電池 |
鈕扣型(LR44)1.5V ×2(顆) |
重量 |
約590g |
|
|
|
|
