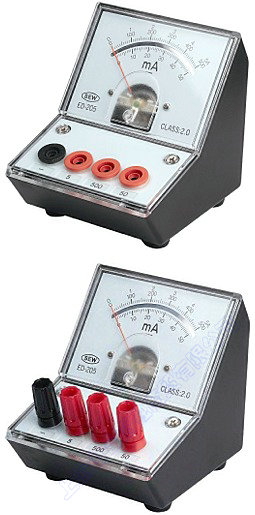

ED-205 Panel Meters
Bench Type
|
 |
|
|
FEATURES |
| |
 Precision meters for plant maintenance, field servicing and educational purposes. |
| Multi terminals (4mm socket) for range selection. |
| Carbon pointer, mirror scale to eliminate parallax error. |
| Safety Standard: CAT III 600V, EN 61326-1, EN 61000-4-2, EN 61000-4-3 |
|
|
|

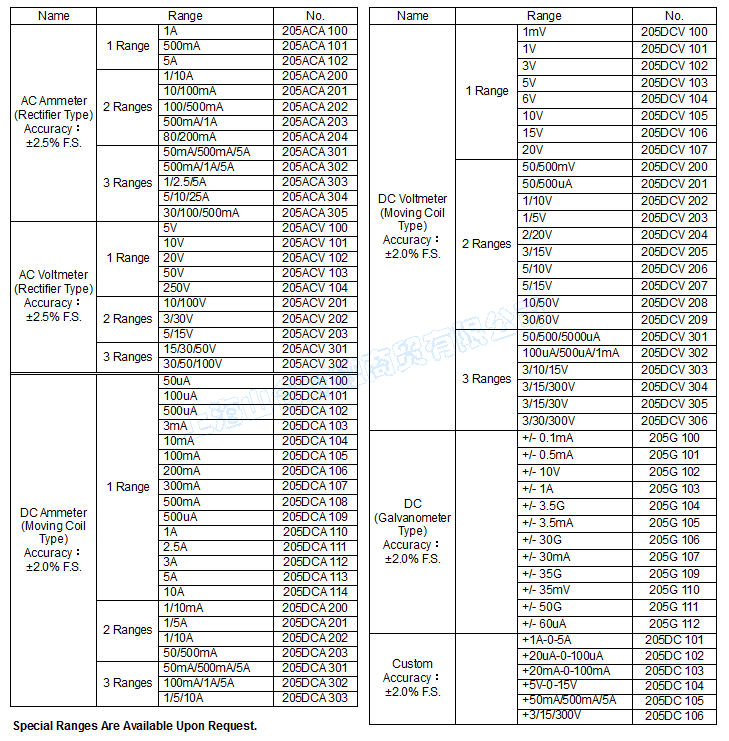

| SPECIFICATIONS |
| |
| Dimensions |
91(L) x 103(W) x 100(D)mm. |
| Scale Length |
Approx. 65mm (deflection angle : 90 degree) |
| Terminal |
4mm socket captive head, suitable for wire or pin-type test lead. |
| Material and Color |
Acrylic resin meter cover, white scale plate, plastic stand in black. |
|
 |
|
| ● 提供為學校的電學教學和訓練，工廠、農牧場電力設備比對和維護 |
| ● 外型尺寸 : 91(長) × 103(寬) × 100(高)公厘 |
| ● 刻度長 : 65公厘 |
| ● 指示角度 : 90° |
| ● 多功能式或隱藏式的極插座 |
| ●材質:壓克力蓋，外殼ABS，刻度板白底黑字 |
| ● 通過歐洲安全規範驗證: |
| CAT Ⅱ 300V |
| EN 61326-1 EN 61000-4-2 EN 61000-4-3 |
|
