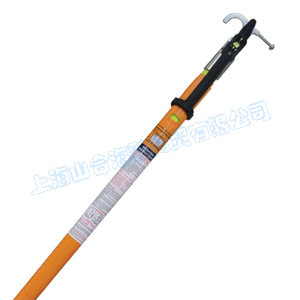

HS-175   Hot Sticks
(Telescopic Hot Stick)
HS-175
FEATURES

 Triangular-shaped design keeps the sections aligned during extension and retraction.
 Telescopic design allows for easy assembly, storage and transportation.
 Withstands voltage rating of 100kV from 30cm for 5 minutes.
 Push button release for stick extension and retraction.
 Universal end fitting accepts a wide variety of standard attachments.
 Highly visible yellow tip section.
 Easy-to-replace sections.
 Carrying bag included.
 Optional integrated height measurement sacle.
 omplies with safety standard.
 The HS-175 Telescopic Hot Stick provides maximum flexibility and access for linesman needing to access electrical systems from a working distance. Its unique triangular design allows for easy operation without compromising strength and durability.
 The HS-175 has been designed to telescopically extend and retract into itself with integrated locking buttons. All sections are made from high grade electrical rated fiberglass.
特 點

● 三角形桿體方便把握與使用,組合拆卸也容易。
● 附有高度刻度,便於識讀高度。
● 。
● 末節為螢光黃綠色,便於目視。
● 頂端有放射狀(sunrise)接頭可以連結功能工具。
● 頂端有橡膠帶設計,可以固定接頭,防止運送操作棒運輸及儲存,受到損壞。
● 如有不同一節損壞時,只要有零件便可以自行更換,每節桿身可單獨分離使用。
● 桿頂為鋁合金接頭設計,可搭接各式不同的工具使用。

多功能的運用
1. 移除或安裝保險絲
2. 更換燈泡
3. 做電壓偵測
4. 清潔高處電器配件
5. 操作開關
6. 作高處剪樹
7. 其他高處工作之應用

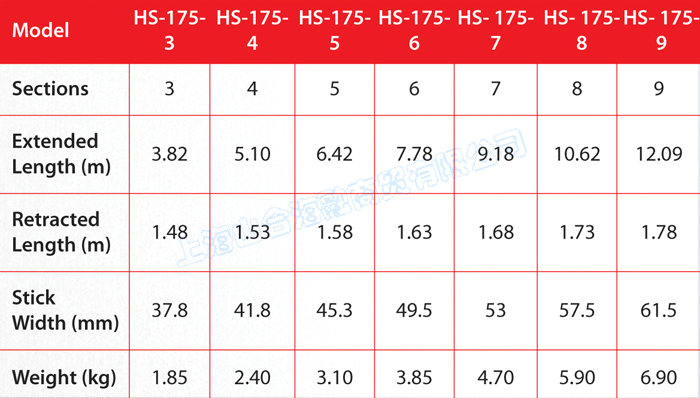

規 格

型號

HS-175-2

HS-175-3

HS-175-4

HS-175-5

HS-175-6

HS-175-7

HS-175-8

HS-175-9

節數

2

3

4

5

6

7

8

9

全伸展長
(公尺)

2.59

3.82

5.10

6.42

7.78

9.18

10.62

12.09

全縮短長
(公尺)

1.43

1.48

1.53

1.58

1.63

1.68

1.73

1.78

底桿外徑
(公厘)

33.5

37.8

41.8

45.3

49.5

53

57.5

61.5

底桿外徑
(公厘)

1.10

1.85

2.40

3.10

3.85

4.70

5.90

6.90
