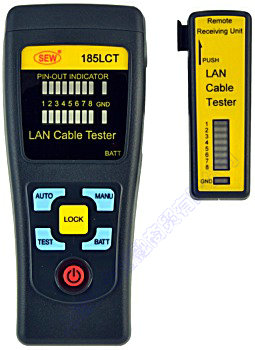

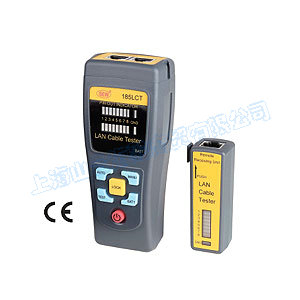

| 185LCT LAN Cable Tester
|
 |
|
|
FEATURES |
| |
 Designed for RJ45/RJ11 modular cables 10/100 base-T cable and Token Ring cable etc. |
| The LAN cable tester can verify cable continuity, open, short circuit and miss-wired. |
| The remote receiving unit is available for installed cables far away either on the wall plates or on the patch panels. |
| Auto and manual scan function. |
| Ground wire test. |
| Lock status function. |
| Buzzer sound warning for wire status. |
| Display : LED indication for wire status. |
| |
|
| The 185LCT LAN cable tesster is a newly designed tool that can easily test the correct pin configuration of the RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc. |
| By comparing one transmitting end and corresponding receiving end, the 185LCT LAN cable tester also can test installed cable far away by using the remote receiving unit. |
| The 185LCT provides the bariety for wiring check, such as cable continuity, open status, short status and mss-wired. |
|
| SPECIFICATIONS |
| |
| Display |
LED |
| Operating Temperature |
0 ~ 40 degree C |
| Power Source |
9V (6F22, 006P) battery x 1 |
| Dimensions |
Master unit : 132 (L) x 55 (W) x 39 (D) mm |
| |
Remote receiving unit : 74 (L) x 30 (W) x 25 (D) mm |
| Weight |
Master unit : 148 g, Remote receiving unit ; 33 g |
| Accessories |
Instruction manual, Pouch, Battery |
|
| 特 點 |
 ● 區域網路測試儀(185 LCT)供檢測RJ45/RJ11纜線， 10/100 base-T纜線及Token Ring纜線
的通路情況。它藉由遠端接收計，很容易檢測出網路線是否導通，開路，短路，或錯接。
● 可作自動掃描及手動掃描。
● 接地線檢測。
● 鎖定功能設計。
● 電池能量LED顯示。
● |
|
| 規 格 |
| 顯示方式 |
LED |
| 操作溫濕度 |
0°C ~ 40°C |
| 儲存溫濕度 |
-5°C-50°CZ大相對溼度80% |
| 外形尺寸 |
主機:
132(長)×55(寬)×39(高)mm
遠端接收計：
74(長)×30(寬)×25(高)mm |
| 重量 |
主機:約148公克
遠端接收計:33公克 |
| 使用電源 |
9V乾電池(6F22)×1 |
|
|
|
