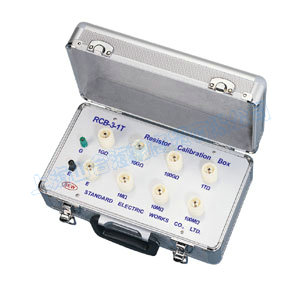

| RCB-3-1T Resistor Calibration Box
|
 |
|
|
 The RCB is also used to verify and proof any High Voltage Insulation Tester. It can be utilized to calibrate all High Voltage Insulation Testers very accurately, analog or igital. |
| Some insitutions and large industries requested their own calibrator. Therefore, SEW started manufacturing the RCB for special customers. |
|
| SPECIFICATIONS |
| |
| Resistance Range (Ohm) |
1M, 10M, 100M, 1G, 5G, 10G, 100G, 1T |
| Resistance Tolerances |
+/- 1%(F) |
| Temperature Coefficient |
+/- 25ppm/degree C : 1M, 2M, 7M, 10M, 20M, 30M, 50M, 100M |
| |
+/- 50ppm/degree C : 200M, 500M |
| |
+/- 100ppm/degree C : 1G, 2G, 5G |
| |
+/- 200ppm/degree C : 10G, 20G, 50G, 100G |
| |
+/- 400ppm/degree C : 200G, 500G |
| |
+/- 1000ppm/degree C : 1T |
| Max. Working Voltage |
DC 10kV |
| Operating Temperature |
-30 degree C ~ 75 degree C |
| Power Consumption |
Below 3W |
| Connecting Terminals |
Binding Post : Resistance cicuit and guard |
| Box Material |
Aluminum |
| Dimensions |
360(L) x 200(W) x 150(D)mm |
| Weight |
Approx. 2.25kg |
|
| 特 點 |
 ● 此一系列高電阻箱，提供給高電壓絕緣表確認或調(diào)整用，它們有精確的電阻值和高工作電壓(DC10KV)，
是值得信賴的儀器。 |
|

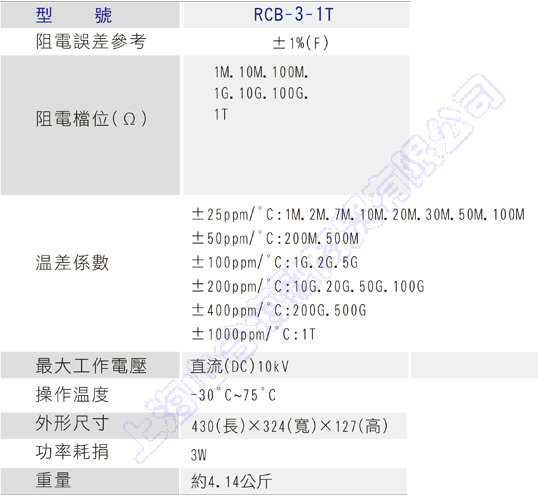

| 規(guī) 格 |
 |
|
