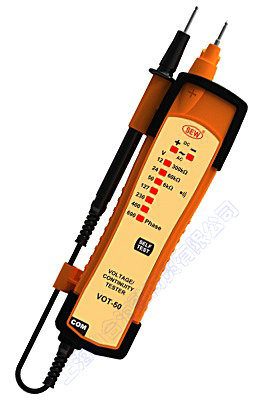

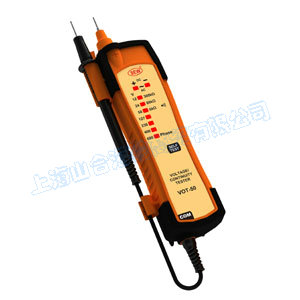

VOT-50 Voltage/Continuity Tester
|
 |
|
|

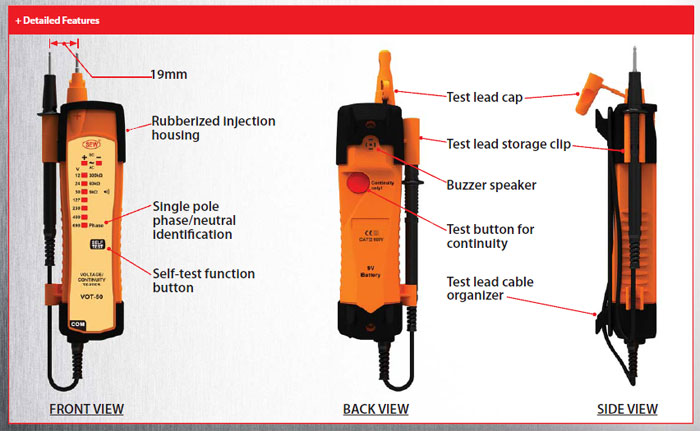

FEATURES |
| |
 Voltage test : 12 to 690V AC/DC (7 LEDs) with indication by buzzer. |
| Voltage range : 12V, 24V, 50V, 127V, 230V, 400V, 690V. |
| Resistance range : 6k Ohm, 60k Ohm, 300k Ohm. |
| Test leads positioned at 19mm apart. |
| Polarity test : LED +/- |
| Audible continuity test |
| Self-test button to ensure proper function of the device prior to testing. |
| Integrated storage clips for test probe. |
| Rubberized injection molding. |
|
|
|
| SPECIFICATIONS |
| |
| Voltage Test |
12 to 690V AC/DC |
| Voltage Range |
12V, 24V, 50V, 127V, 230V, 400V, 690V |
| Working Frequency |
0 to 400 Hz |
| Voltage Protection |
1000V DC / 700V AC |
| Continuity Range |
6k Ohm |
| Resistance Range |
6k Ohm, 60k Ohm, 300k Ohm |
| Operating Temperature |
0 to 40 degree C |
| Operating Humidity |
80% RH |
| Probe Distance |
19mm apart |
| Power Soure |
9V battery x 1 |
| Dimensions (mm) |
260 (L) x 58 (W) x 42 (D) mm |
| Weight |
Approx. 210g (battery included) |
| Electrical Safety |
CAT III 600V |
| Accessories |
Instruction manual, pouch & battery |
|
 |
|
| VOT-50電壓與導通測試計 特點 |
 ● 利用LED和蜂鳴器響應來指示交直流電壓(AC/DC)屬 於那個檔位，大約是多少伏特(V)，交直流電壓範圍 從12V~690V。
● 一共有7個檔位:12V，24V，50V，127V，230V， 400V，690V。
● DC有極性(+或－)LED指示。
● 導通測試有蜂鳴器響應。
● 自我測試按鈕設計，可確定在測試之前功能WQ整確。 ˙防水
● 可辨別相位和N(中性) |
|
| 電器規格 |
 |
|
